Alfa Laval AFPX 810XGD-74 concentrator

Alfa Laval AFPX 810XGD-74 concentrator

€66,000 (EUR)

EXW Hirtshals - including 12 month warranty period

Location:Hirtshals, Denmark

orCall +45 70 200 318

Description

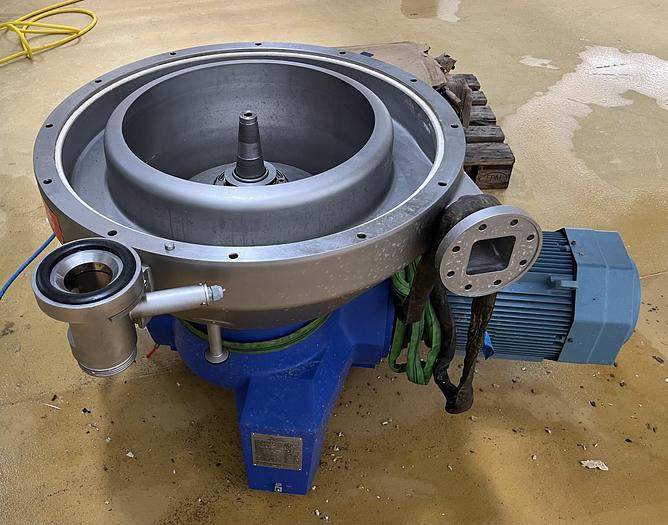

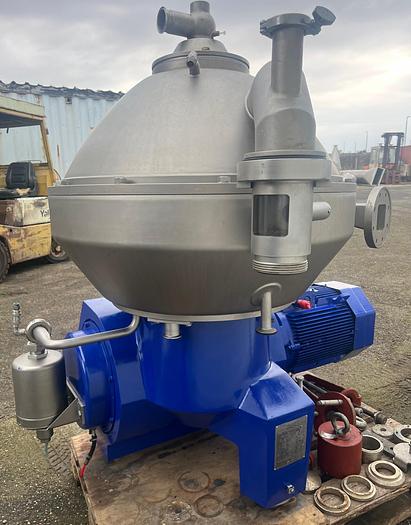

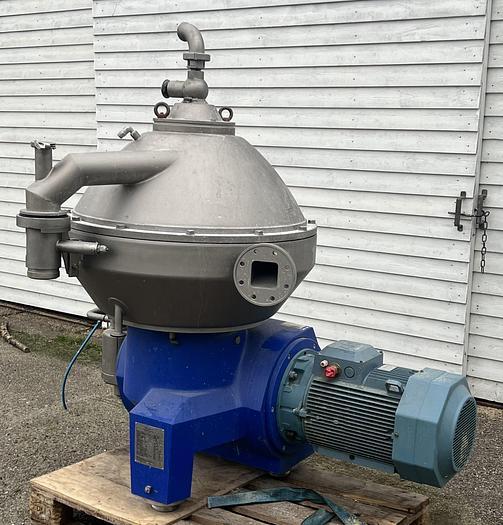

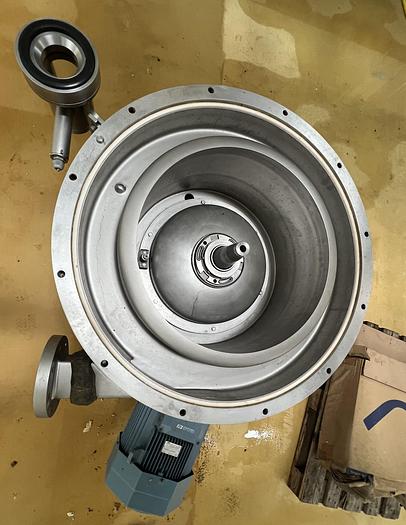

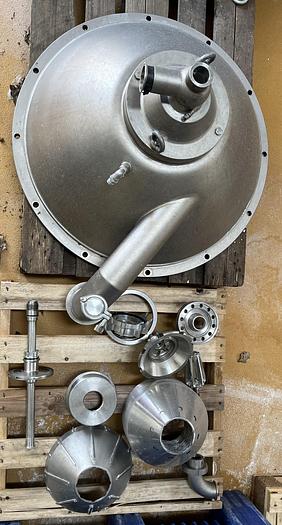

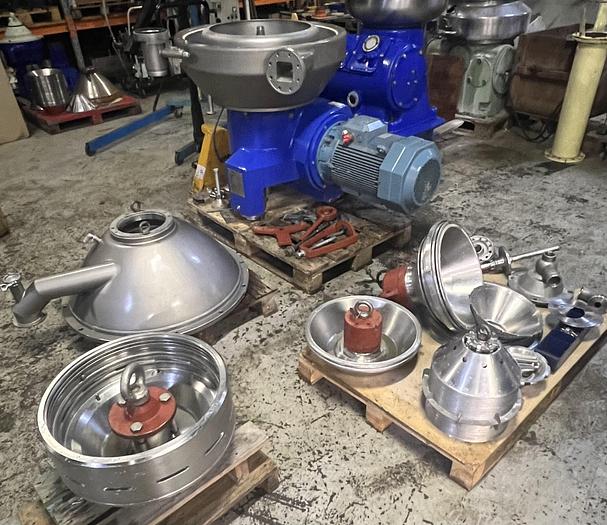

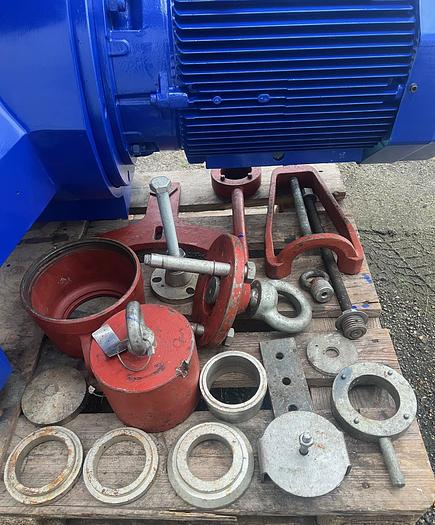

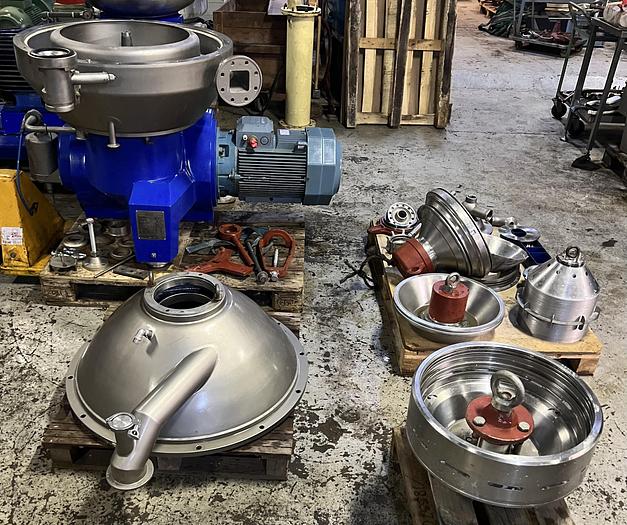

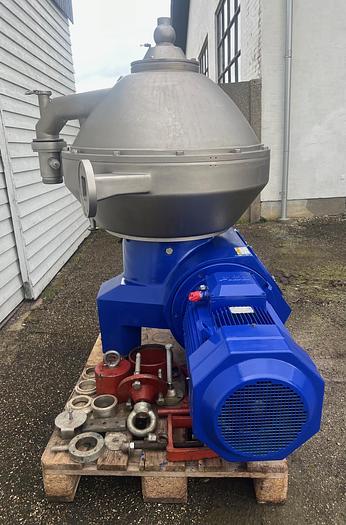

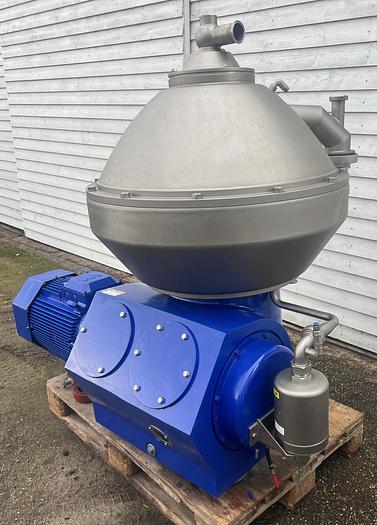

One AS-NEW Alfa Laval separator, type AFPX 810XGD-74 concentrator. The unit comes with 12 month warranty period, set of tools and manual. Max. hydraulic capacity: 17.000 liter/hour. Feed temperature, min./max: 0/100 deg. C. Discharge volume, min./max: 6/13 liters, Discharge interval, min./max: 1/60 minutes. Foundation frame and cyclone is not included - but can be offered as optional.

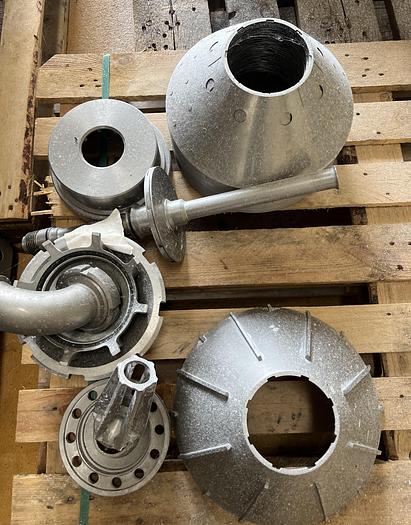

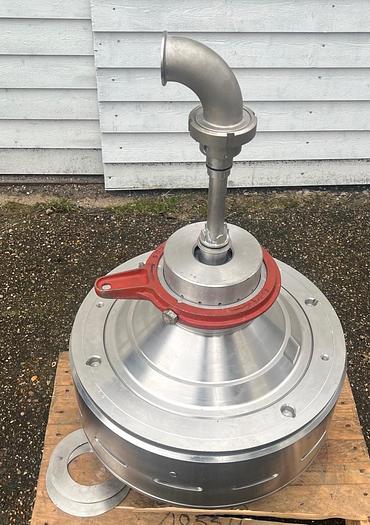

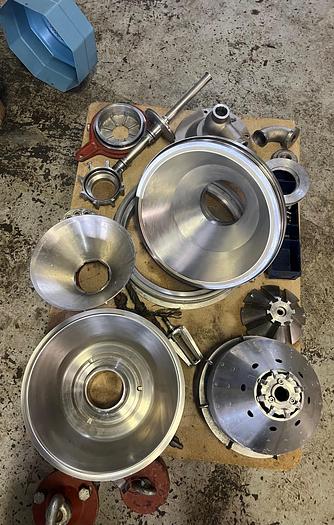

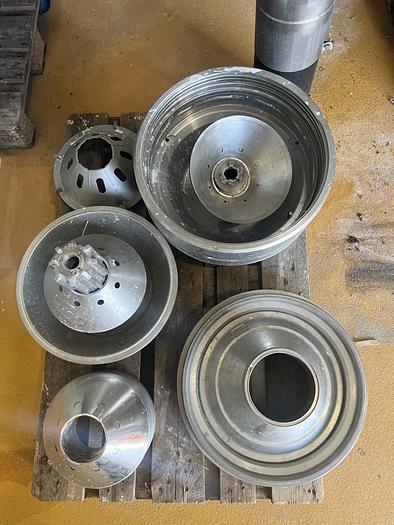

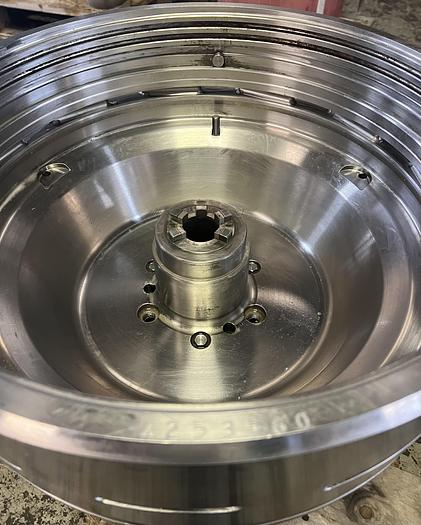

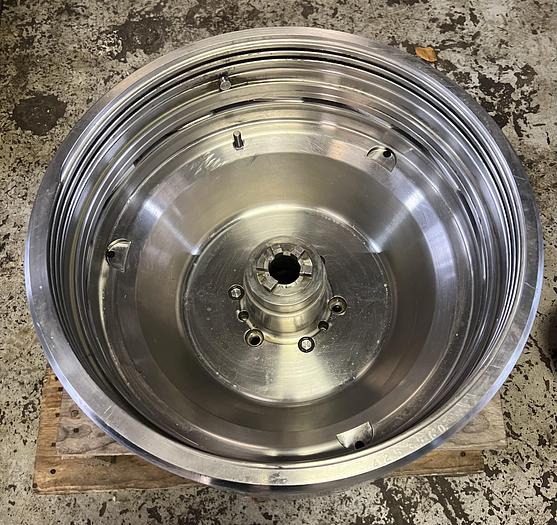

Disc distance: 0,5 mm. Bowl with wear protection - wear liners in the wall pillars - and wear liner in the sliding bowl bottom.

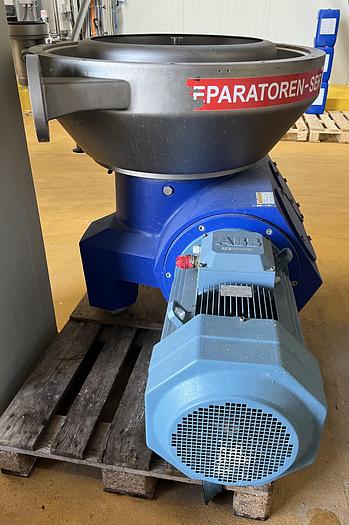

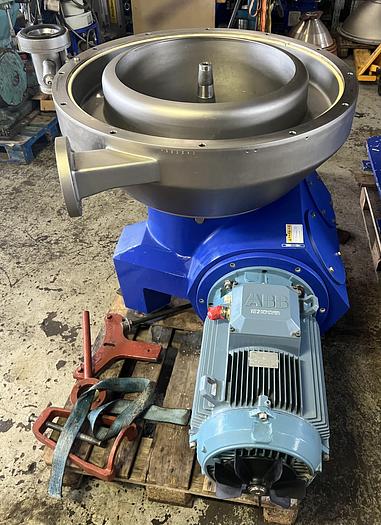

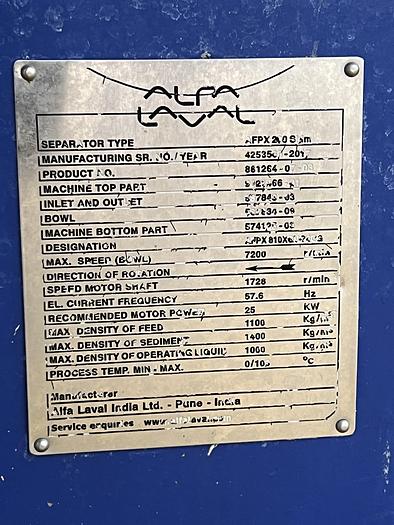

Max bowl speed: 7.200 rpm. Motor: 22 kW, 50 Hz, 400 V, 43.50 Amp, 1484 rpm.


The machine will be spin tested at full speed and vibration will be measured and video recorded by the local Alfa Laval Service Center in Denmark.

Specifications

ManufacturerAlfa Laval
ModelAFPX 810XGD-74 concentrator
Year2017
ConditionRefurbished
Serial Number4253560
Stock Number241042
