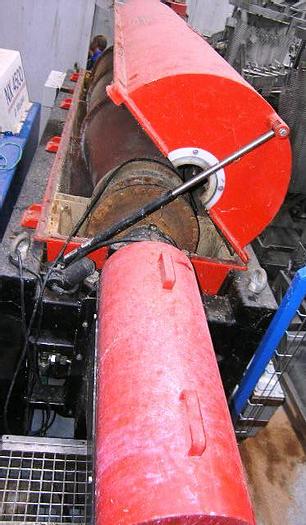

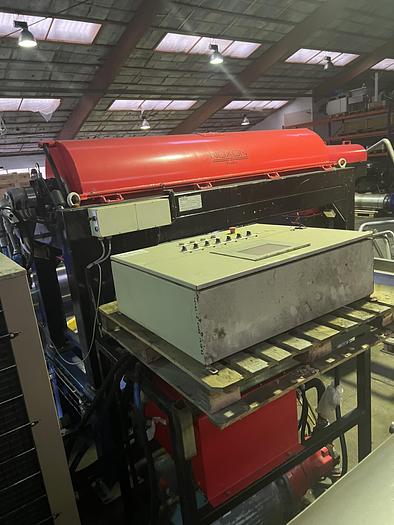

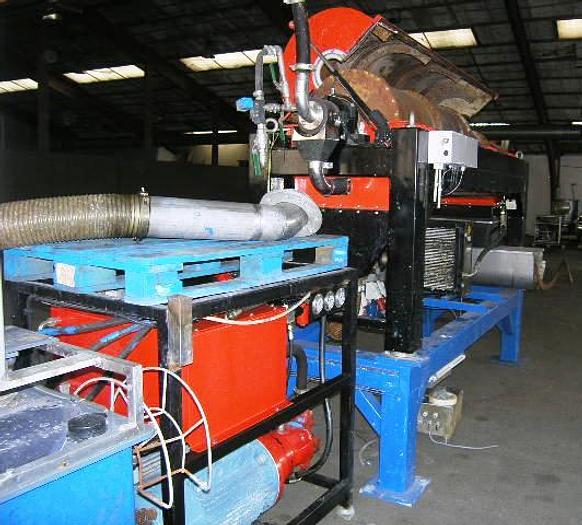

NOXON – DC 20 decanter, for sludge dewatering

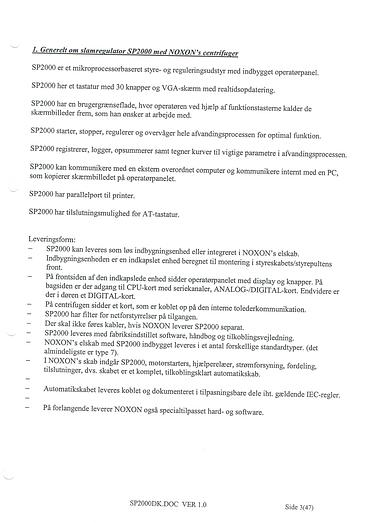

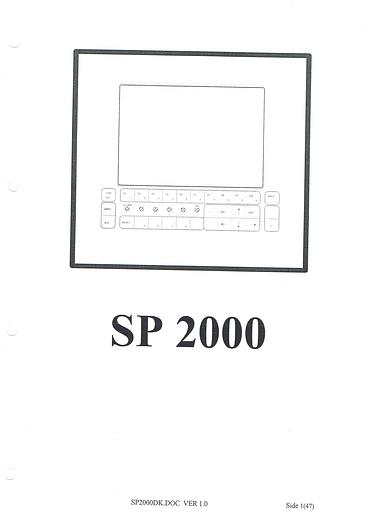

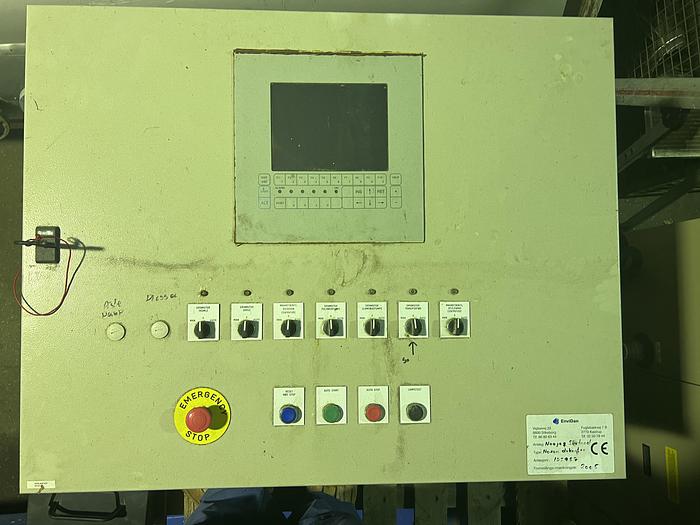

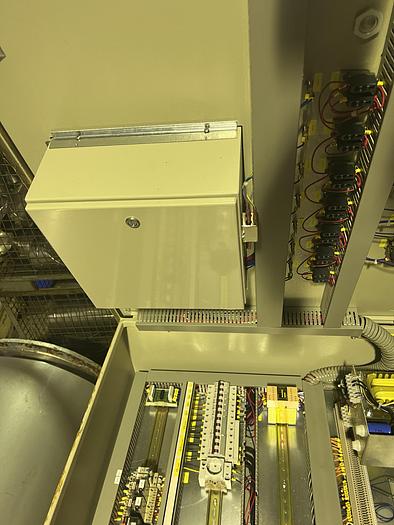

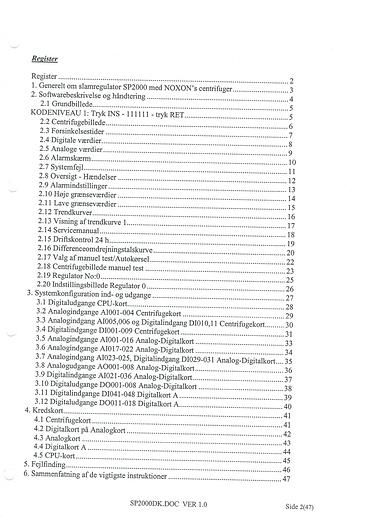

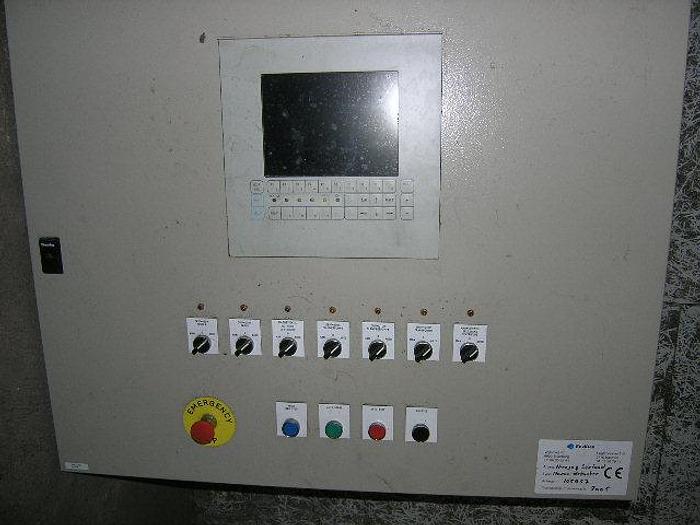

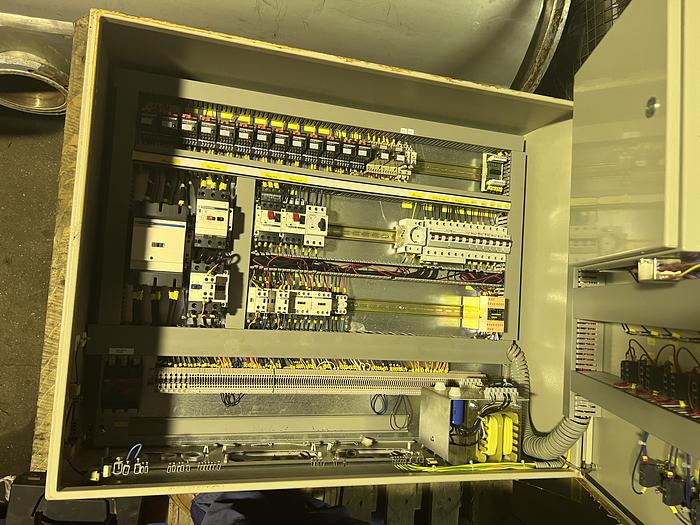

NOXON decanter, type DC 20. Excellent working condition. Including manual in Danish language. Sludge dewatering capacity: 800 kg/hour (20 m3/h with 4 % DS). The unit is equipped with hydraulic motor and an automatic hydraulic back drive system. Including electrical panel with electric documentation.

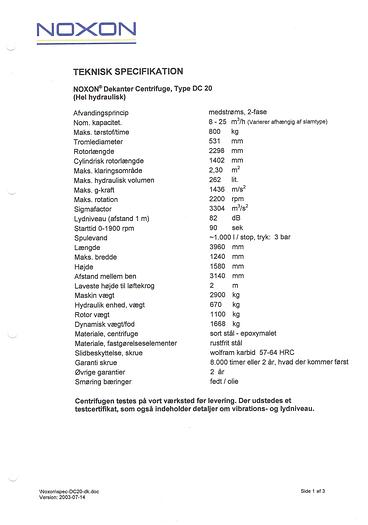

Bowl diameter: 531 mm. L/D ratio: 4,33 Half cone angle: 8,0. D-solids: 343 mm. L-cyl: 1496 mm L-cone: 896 mm.

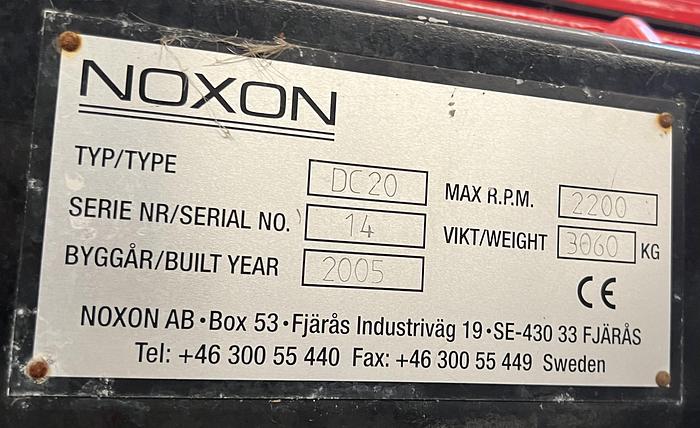

Max bowl speed: 2200 rpm. G-force: 1436.

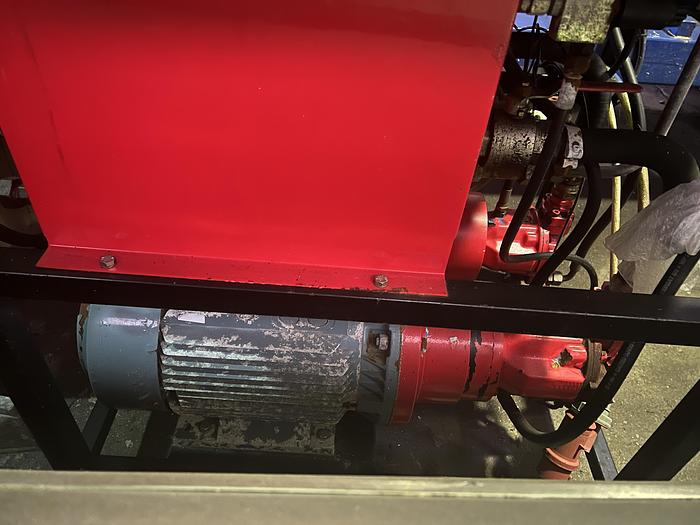

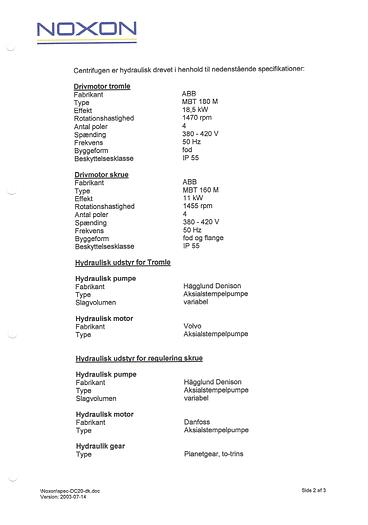

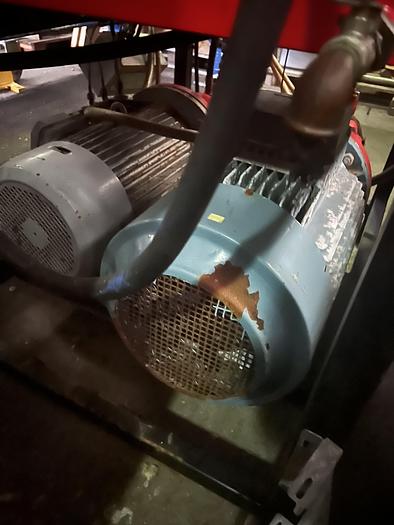

Drive - hydraulic motor: 18,5 kW

Drive - hydraulic motor for bowl screw conveyor: 11 kW
